Atlas Copco GA⁽⁺⁾ 30-90 Oil-Flooded Screw Air Compressors

Atlas Copco GA⁽⁺⁾ 30-90 Oil-Flooded Screw Air Compressors

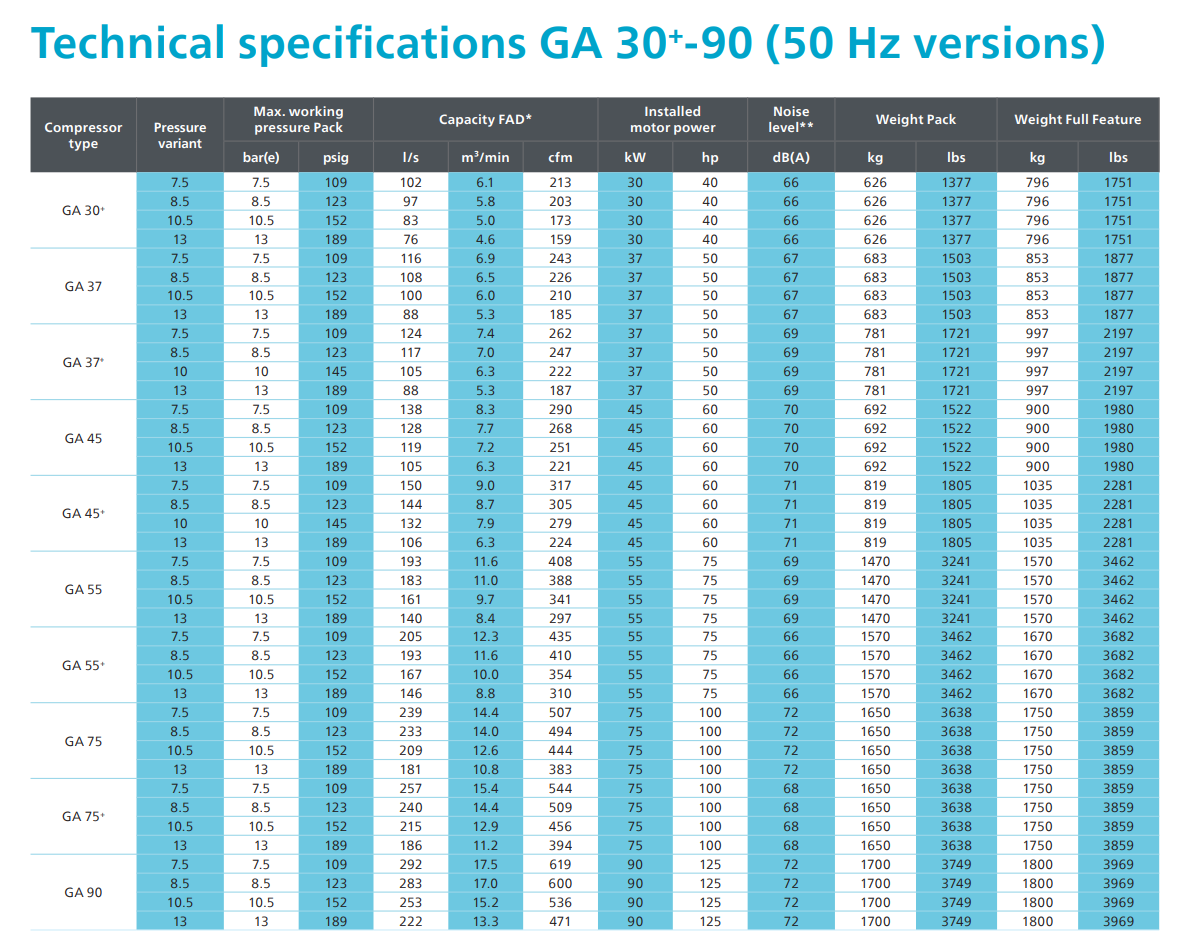

Technical parameters and product introduction
•  The ultimate smart solution, driven by efficiency
-  Atlas Copco’s GA and GA+ compressors bring you outstanding sustainability, reliability and performance, while minimizing your total cost of ownership. A choice of two premium fixed-speed compressor types provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, the GA and GA+ keep your production running efficiently

•  GA 37-90 Premium performance
-  High-performance Free Air Delivery.
-  Premium quality at the lowest initial investment.
-  Integrated refrigerant dryer.
-  Elektronikon® Touch controller (optional for GA 37/GA 45).
-  SMARTLINK real-time, remote monitoring and optimization.

•  GA 30+-75+ Industry-leading efficiency
-  Best-in-class Free Air Delivery.
-  Lowest energy consumption for applications with a stable air demand.
-  Intelligent features boost efficiency and reliability.
-  Integrated refrigerant dryer.
-  Elektronikon® Touch controller.
-  SMARTLINK real-time, remote monitoring and optimization.
-  OPC UA available for production system integration.

•  GA 30+-75+: ndustry-leading efficiency
-  The GA 30+-75+ is our fixed-speed oil-injected rotary screw compressor hat sets the industry standard. It gives you more of the things that really matter: more energy savings, more air, and a longer lifetime. Its state-of-the-art compression element and a host of advanced features ensure maximum performance with best-in-class efficiency
-  Maintenance-free drive system
- 100% maintenance-free; totally enclosed and protected against dirt and dust.
-  No coupling or slippage losses.
-  Standard up to 46˚C/115˚F; high ambient version 55˚C/131˚F.
-  Works reliably in harsh environments.
-  IE4 Super Premium Efficiency motor
-  IP55, insulation Class F, B rise.
-  Non-drive side bearing greased for life.
-  Designed for continuous operation in harsh environments.
-  Robust spin-on oil filter
-  High-efficiency; removes 300% smaller particles than a conventional filter.
-  Integrated bypass valve with the oil filter.
-  8000-hour service interval (GA 55+/GA 75+).
-  Separate oversized oil cooler and aftercooler
-  Low element outlet temperatures ensure long oil lifetime.
-  Removal of nearly 100% of condensate with integrated mechanical separator.
-  Smart Thermostatic Control System (GA 55+/GA 75+)
-  Intelligent algorithm achieves ideal injection temperature.
-  Combines multiple operational parameters, including ambient temperature, pressure, humidity and load.
-  Increases compressor efficiency and reliability.
-  Intelligent sensors (GA 55+/GA 75+)
-  Pressure drop sensors monitor the lifetime of the inlet filter, the oil separator, and the oil filter (optional).
-  SPM vibration sensor measures the vibration of the drive train and sends real-time updates via SMARTLINK (option).
-  CAN-cables allow for easy updates.
-  Elektronikon® Touch for remote monitoring
-  High-tech controller with warning indications, compressor shut-down and maintenance scheduling.
-  Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
-  Optional multiple compressor control (2, 4 or 6 compressors).
-  Heavy-duty air intake filter
-  Protects compressor components by removing 99.9% of dirt particles down to 3 microns.
-  Long, 8000-hour lifetime (GA 55+/GA 75+

•  GA 55+/GA 75+ exclusive: Smart Temperature Control System
-  Our in-house developed Smart Temperature Control System introduces a new level
of element efficiency and reliability. Its intelligent algorithm calculates the ideal oilinjection temperature based on parameters such as ambient and oil temperature, pressure and load, and air humidity. When necessary, the STC valve routes the oil via
the coolers to achieve that ideal temperature to maximize compression efficiency and eliminate any risk of condensation.

•   GA 37-90: Premium performance
-  The GA 37-90 gives you that trusted Atlas Copco oil-injected screw performance ata low investment cost. Built with top-quality materials, the GA 37-90 ensures compressed air reliability and efficiency in the toughest conditions.
-  Maintenance-free drive system
-  100% maintenance-free; totally enclosed and protected against dirt and dust.
-  Suitable for harsh environments.
-  No coupling or slippage losses.
-  Standard up to 46˚C/115˚F; high ambient version 55˚C/131˚F.
-  IE3 Premium Efficiency electrical motor
-  IP55, insulation Class F, B rise.
-  Non-drive side bearing greased for life.
-  Oil-lubricated drive side bearings.
-  Designed for continuous operation in harsh environments
-  Robust spin-on oil filter
-  High-efficiency; removes 300% smaller particles than a conventional filter.
-  Integrated bypass valve with the oil filter.
-  Separate oversized oil cooler and aftercooler
-  Low element outlet temperatures ensure long oil lifetime.
-  Removal of nearly 100% of condensate with integrated mechanical separator.
-  No consumables.
-  Eliminates possibility of thermal shocks in coolers.
-  Advanced Elektronikon® Touch control & monitoring (optional for GA 37/GA 45)
-  Integrated smart algorithms reduce system pressure and energy consumption.
-  Monitoring features include warning indications, maintenance scheduling, and online visualization of machine conditions.
-  Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
-  Heavy-duty air intake filter
-   Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
-  Differential inlet pressure for proactive maintenance while minimizing pressure drop

•  Built-in quality air
-  Untreated compressed air contains moisture, aerosols and dirt particles that can damage your air system and contaminate your end product, creating the risk of corrosion and leaks. Maintenance and repair expenses can far exceed air treatment
costs. An air dryer is therefore essential to protect your systems and processes.The GA and GA+ have an integrated dryer option to ensure your peace of mind.
-  A fully integrated dryer
-  Optimized sizing for the compressor avoids excessive energy consumption.
-  Fit for your application.
-  Controlled and monitored by the Elektronikon®
-  Space-saving all-in-one solution with low installation costs

•  Lowest lifecycle costs and peace of mind
-  No extra installation costs.
-  Save on floor space.
-  Use of energy-efficient, environmentally friendly refrigerant R410A reduces operating costs and ensures zero ozone depletion.
-  Heat exchanger cross-flow technology with low pressure drop, saving
energy and costs.
-  Zero waste of compressed air thanks to no-loss condensate drain.
-  Advanced control functions ensure dry air under all circumstances and prevent freezing at low load.
-  Pressure dewpoint of 3°C/37°F (100% relative humidity at 20°C/68°F)

•   Built-in energy recovery
-   As much as 90% of the electrical energy used by a compressed air system is converted into heat.Why let that heat go to waste? A specifically developed energy recovery system can be built into your GA and GA+, allowing you to recover up to 75% of that power input as hot air or hot water (e.g.: changing room showers). Through efficient use of the recovered energy, you generate important energy cost savings and a high return on investment without compromising your compressor’s performance.

•   Hot water
-   Convert compressor heat into hot water for:
-   Radiators
-   Laundries, industrial cleaning and sanitary facilities
-   Industrial process heating
-   Canteens and large kitchens
-   Food, chemical and pharmaceutical industries

•   Quality Assurance
-   The Seller warrants that the ordered goods are manufactured from high-quality materials and standard processes, are brand new and unused, and fully comply with the quality, specifications, and performance stipulated in this Contract. The Seller further warrants that the goods ordered under this Contract, when properly installed, used, and maintained, shall be free from defects for a period of 18 months from the date of shipment from the port of export, or 12 months from the date of commissioning, whichever occurs first.
