Ingersoll Rand IRN37K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compression air end with super coating and stainless steel rotors
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor within the inverter
- Air-cooled variable frequency fan motor
- Luminance controller
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 37-45KW 65-74 dB(A) (air-cooled) / 63-69 dB(A) (water-cooled)
55-75KW 78 dB(A) (air/water-cooled)
- Unit dimensions (mm):
2080 L x 1115 W x 2024 H (37-45KW)

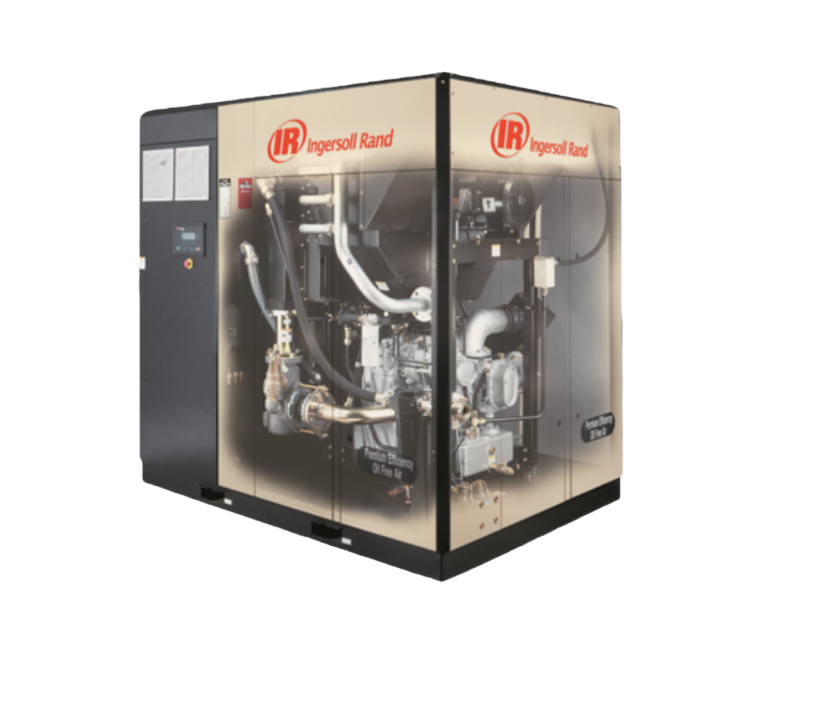

Ingersoll Rand IRN45K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compression air end with super coating and stainless steel rotors
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor within the inverter
- Air-cooled variable frequency fan motor
- Luminance controller
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 37-45KW 65-74 dB(A) (air-cooled) / 63-69 dB(A) (water-cooled)
55-75KW 78 dB(A) (air/water-cooled)
- Unit dimensions (mm):
2080 L x 1115 W x 2024 H (37-45KW)

Ingersoll Rand IRN55K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compression air end with super coating and stainless steel rotors
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor within the inverter
- Air-cooled variable frequency fan motor
- Luminance controller
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 37-45KW 65-74 dB(A) (air-cooled) / 63-69 dB(A) (water-cooled)
55-75KW 78 dB(A) (air/water-cooled)
- Unit dimensions (mm):
2078 L x 1321 W x 1948 H (55-75KW)
Air-cooled/Water-cooled: 2041 (55-75KW)

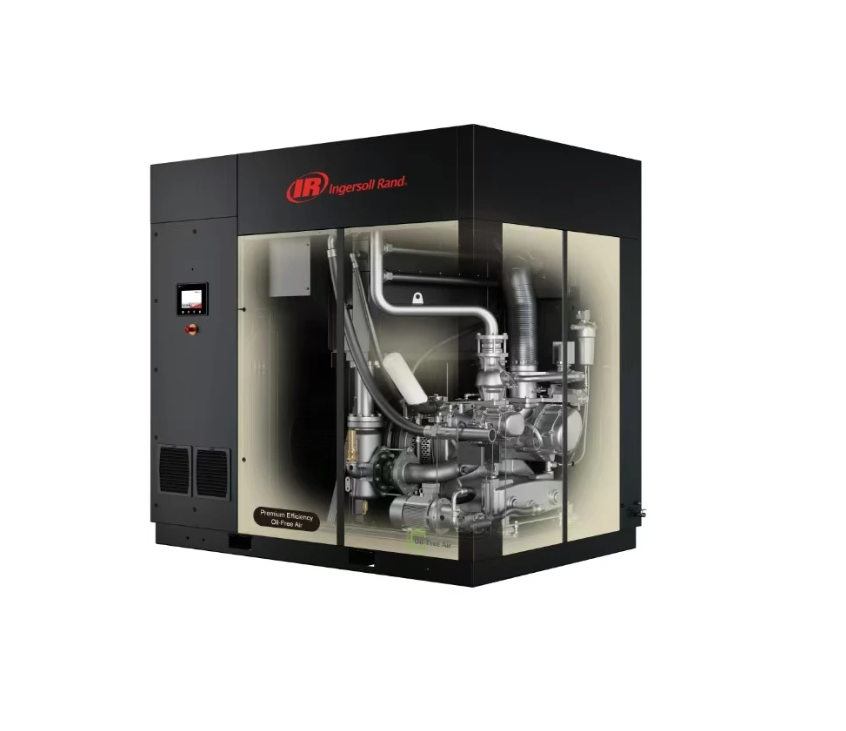

Ingersoll Rand IRN75K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compression air end with super coating and stainless steel rotors
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor within the inverter
- Air-cooled variable frequency fan motor
- Luminance controller
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 37-45KW 65-74 dB(A) (air-cooled) / 63-69 dB(A) (water-cooled)
55-75KW 78 dB(A) (air/water-cooled)
- Unit dimensions (mm):
2078 L x 1321 W x 1948 H (55-75KW)
Air-cooled/Water-cooled: 2041 (55-75KW)

Ingersoll Rand IRN90K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compression air end with super coating
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor in the inverter
- Air-cooled with VFD-driven fan motor
- Luminance Controller:
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 72-79 dB(A) (air-cooled) / 69-73 dB(A) (water-cooled)
- Unit dimensions (mm): 2547 L x 1885 W x 2435 H
- Weight (kg): 3215

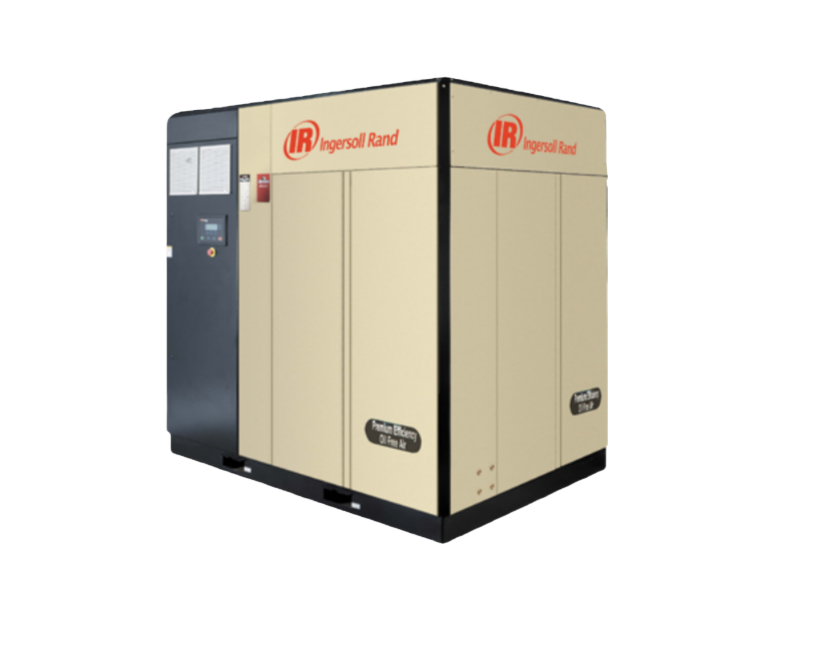

Ingersoll Rand IRN110K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compression air end with super coating
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor in the inverter
- Air-cooled with VFD-driven fan motor
- Luminance Controller:
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 72-79 dB(A) (air-cooled) / 69-73 dB(A) (water-cooled)
- Unit dimensions (mm): 2547 L x 1885 W x 2435 H
- Weight (kg): 3215

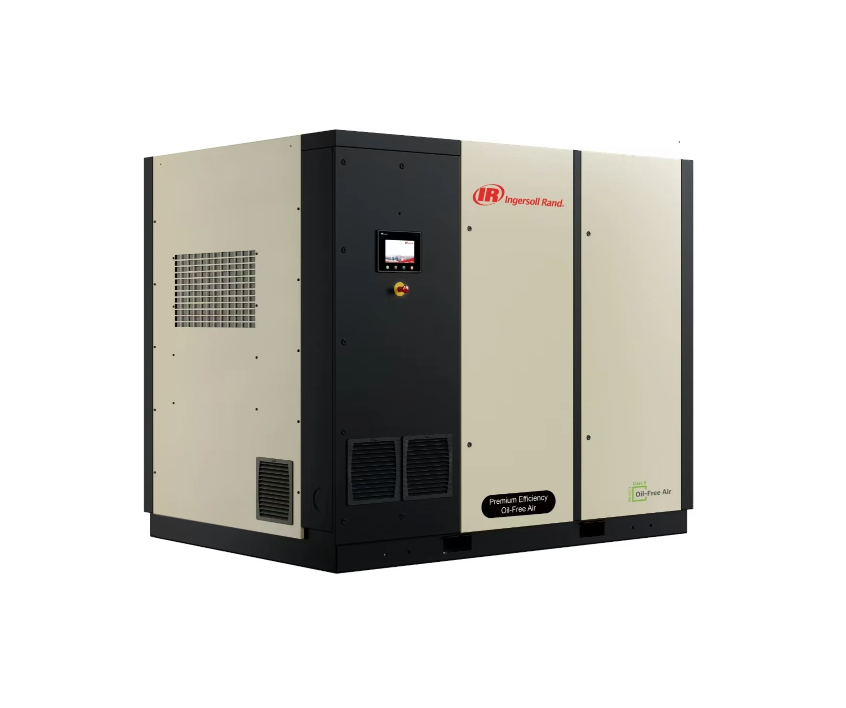

Ingersoll Rand IRN132K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compressed AIR NED with super coating
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor in the inverter
- Air-cooled with VFD-driven fan motor
- Luminance Controller:
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 72-79 dB(A) (air-cooled) / 69-73 dB(A) (water-cooled)
- Unit dimensions (mm): 2547 L x 1885 W x 2435 H
- Weight (kg): 3215

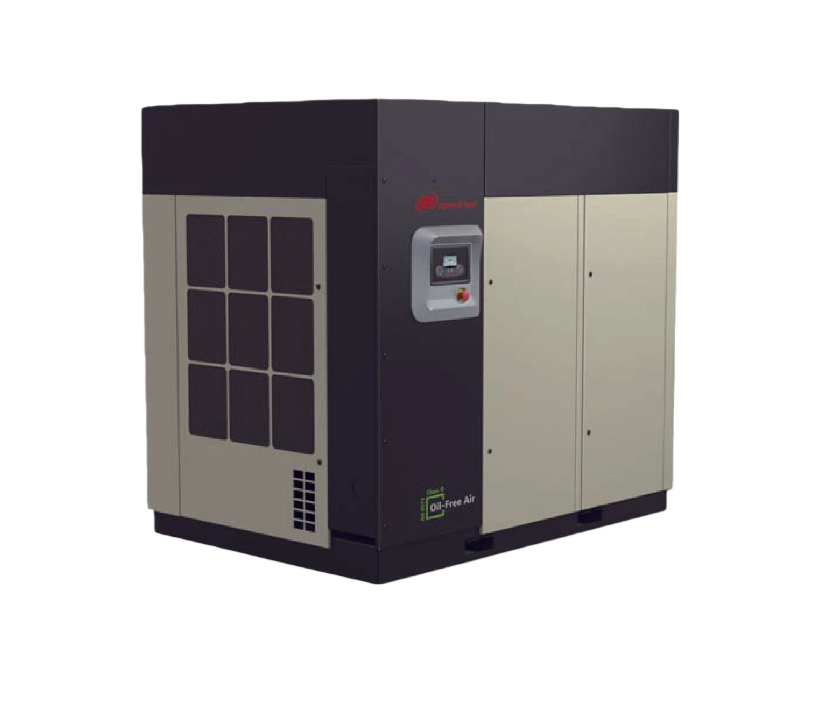

Ingersoll Rand IRN160K-OF Oil-free Screw Air Compressor

Description
- High-efficiency hybrid permanent magnet IE4 motor, IP55 protection rating
- Efficient and reliable Ingersoll Rand two-stage compressed AIR NED with super coating
- Integrated 400V/3Ph/50Hz variable frequency drive
- Built-in reactor in the inverter
- Air-cooled with VFD-driven fan motor
- Luminance Controller:
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- Unit noise: 72-79 dB(A) (air-cooled) / 69-73 dB(A) (water-cooled)
- Unit dimensions (mm): 2547 L x 1885 W x 2435 H
- Weight (kg): 3215

Ingersoll Rand E185-E355 Series Oil-free Screw Air Compressor

Technical Parameters:
- High-efficiency 400V/3PH/50Hz motor, TEFC IE3 protection class
- High-efficiency 6kV/3PH/50Hz and 10kV/3PH/50Hz ODP motors
- Electrical protection class IP54
- Newly designed, energy-efficient, two-stage oil-free screw airend
- Aftercooler comes standard with a gas-water separator
- Luminance energy-saving controller
- User-friendly interface with Chinese and English display
- Modbus RTU communication protocol, RS485 serial communication port
- IoT functionality standard
- Air-cooled: 80 dB(A) Water-cooled: 76 dB(A) 80 dB(A) (without aftercooler) Low-noise enclosure
- Unit dimensions (mm): 3482L x 2150W x 2448H
400V, 6kV, 10kV
- Unit weight (kg): Air-cooled: E200i: 6,144 6,006 6,006
Water-cooled: E200i: 5,452 5,314 5,314
5269 (without aftercooler)
Air-cooled: E250i: 6,601 6,036 6,036
Water-cooled: E250i: 5,909 5,344 5,344
5726 (without aftercooler)
Air-cooled: E315i: 6,766 6,056 6,056
Water-cooled: E315i: 6,074 5,364 5,364
5880 (without aftercooler)
Water-cooled: E355i: 6,089 5,364 5,364

E315i-A7.5。E315i-A8.5。E315i-A10.5。E315i-A7.5。E315i-A8.5
E315i-A10.5。E315i-A7.5。E315i-A8.5。E315i-A10.5。E315i-W7.5。
E315i-W8.5。E315i-W10.5。E315i-W7.5。E315i-W8.5。E315i-W10.5
E315i-W7.5。E315i-W8.5。E315i-W10.5。E355i-W10.5。E355i-W10.5
E355i-W10.5。E200i-A7.5。E200i-A8.5。E200i-A10.5。E200i-A7.5
E200i-A8.5。E200i-A10.5。E200i-A7.5。E200i-A8.5。E200i-A10.5
E200i-W7.5。E200i-W8.5。E200i-W10.5。E200i-W7.5。E200i-W8.5
E200i-W10.5。E200i-W7.5。E200i-W8.5。E200i-W10.5。E250i-A7.5。
E250i-A8.5。E250i-A10.5。E250i-A7.5。E250i-A8.5。E250i-A10.5
E250i-A7.5。E250i-A8.5。E250i-A10.5。E250i-W7.5。E250i-W8.5
E250i-W10.5。E250i-W7.5。E250i-W8.5。E250i-W10.5。E250i-W7.5
E250i-W8.5。E250i-W10.5。E200ie-W7.5。E200ie-W8.5。
E200ie-W10.5。E200ie-W7.5E200ie-W8.5。E200ie-W10.5
E200ie-W7.5。E200ie-W8.5。E200ie-W10.5。E250ie-W7.5。
E250ie-W8.5。E250ie-W10.5。E250ie-W7.5。E250ie-W8.5
E250ie-W10.5。E250ie-W7.5。E250ie-W8.5。E250ie-W10.5
E315ie-W7.5。E315ie-W8.5。E315ie-W10.5。E315ie-W7.5
E315ie-W8.5。E315ie-W10.5。E315ie-W7.5。E315ie-W8.5
E315ie-W10.5。E355ie-W10.5。E355ie-W10.5
E355ie-W10.5

Ingersoll Rand E355 - E500 Series Oil-free Screw Air Compressor

Technical Parameters:
- High-efficiency 400V/3PH/50Hz motor, TEFC IE3 protection class
- 6kV/3PH/50Hz, 10kV/3PH/50Hz ODP motors
- Electrical protection class IP54
- Newly designed, energy-efficient, two-stage oil-free screw airend
- Automatic start/stop function
- Integrated cooler and air-water separator for easy maintenance
- Standard star-delta starter for low-voltage motors
- Luminance controller
- User-friendly interface with Chinese and English display
- Web-based online diagnostics and remote control
- Records over 300 past events
- Modbus RTU communication protocol, RS485 serial communication port
- Standard IoT functionality
- Water-cooled: 80 dB(A), 85 dB(A) (excluding aftercooler) Low-noise enclosure
- Unit dimensions (mm)
- Unit weight (kg): 400V 6kV 10kV
Water-cooled: E355i: 9,514, 9,275, 9,595
9,019 (without aftercooler)
Water-cooled: E400i: 10,509, 9,375, 10,175
10,014 (without aftercooler)
Water-cooled: E450i: 10,639, 9,525, 10,375
10,144 (without aftercooler)
Water-cooled: E500i: 10,814, 10,375, 10,575
E355-500i
Oil-free screw air compressor
4488 x 2211 x 2430 (6kV, 10kV);
4488 x 2211 x 2430, 4511L x 2211W x 2430H (excluding aftercooling)
For 6KV and 10KV TEFC units, the overall dimensions will differ from those of ODP units.

E355i W7.5。E355i W8.5。E400i W7.5。E400i W8.5。E400i W10.2。E450i W7.5E450i W8.5。
E450i W10.2。E500i W7.5。E500i W8.5。E500i W10.2。E355i W7.5。E355i W8.5。E400i W7.5。
E400i W8.5。E400i W10.2。E450i_W7.5。E450i W8.5。E450i W10.2。E500i W7.5。E500i W8.5。
E500i W10.2。E355i W7.5。E355i W8.5。E400i W7.5。E400i W8.5。E400i W10.2。E450i W7.5。
E450i W8.5。E450i W10.2。E500i W7.5E500i W8.5。E500i W10.2。E355nxW10.2。E400n_W10.2。
E450n_W10.2。E500n W10.2

Ingersoll Rand SM/SL/SH37 Oil-free Screw Air Compressor Sierra Series

Description
- High-efficiency 380-415V/3PH/50Hz IE4 motor, TEFC protection rating
- Two-stage oil-free screw compressor AIR END
- Automatic start/stop function
- Optional air-cooled or water-cooled aftercooler with air-water separator
- Star-delta starter
- Luminance energy-saving controller:
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- 79 dB(A) low-noise enclosure
Air-cooled: 2248 L x 1372 W x 1917 H
Water-cooled: 2248 L x 1372 W x 1917 H
- Unit Weight (kg):
S37 Air-Cooled: 2387
S37 Water-Cooled: 2410

Ingersoll Rand SM/SL/SH45 Oil-free Screw Air Compressor Sierra Series

Description
- High-efficiency 380-415V/3PH/50Hz IE4 motor, TEFC protection rating
- Two-stage oil-free screw compressor AIR END
- Automatic start/stop function
- Optional air-cooled or water-cooled aftercooler with air-water separator
- Star-delta starter
- Luminance energy-saving controller:
- Chinese/English display with user-friendly interface
- Modbus RTU communication protocol, RS485 serial port
- Standard IoT functionality
- 79 dB(A) low-noise enclosure
Air-cooled: 2248 L x 1372 W x 1917 H
Water-cooled: 2248 L x 1372 W x 1917 H
- Unit Weight (kg):
S45 Air-Cooled: 2497
S45 Water-Cooled: 2520
