Atlas Copco GA 30+-90/GA 37-110 VSD+ Oil-Flooded Screw Air Compressors
Technical parameters and product introduction
• The technology that drives sustainability
- Smart Temperature Control System Calculates and achieves the idealoil-injection temperature basedon actual operating conditionsto maximize efficiency.
- Intelligent sensorsConstantly monitor the pressuredrop and thus any energy lossesin the inlet filter, the oilseparator, and the oil filter.
- Energy recoveryGives you additional energysavings by recovering andre-using up to 75% of the heatthe compressor produces.
• The ultimate smart solution, driven by efficiency
- Atlas Copco’s GA compressors bring you outstanding sustainability, reliability and performance, while minimizing total cost of ownership. A choice of three premium compressor types (GA VSD+, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
• GA 37-90 Premium compressor
- High-performance Free Air Delivery.
- Premium quality at the lowest initial investment.
- Integrated refrigerant dryer.
- Elektronikon® Touch or Swipe controller.
- SMARTLINK real-time, remote monitoring and optimization.
• GA 30+-75+ Smart performance
- IE4 motor and high-efficiency element.
- In-house developed Smart Temperature Control System ensures oil temperature is always optimal to achieve maximum element efficiency and reliability (on GA 55+-75+).
- Low noise emission suitable for
- workplace installation.
- Integrated refrigerant dryer.
- Elektronikon Touch controller.
- SMARTLINK real-time, remote monitoring and optimization.
- OPC UA connectivity available.

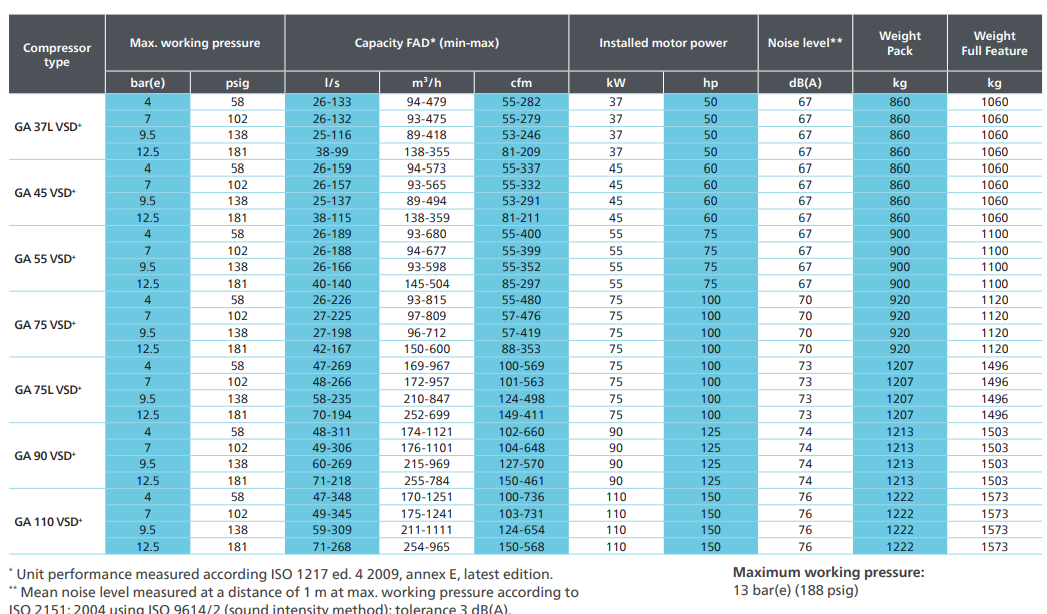

• GA 37L-110 VSD+ Ultimate energy saver
- Up to 50% energy savings compared to fixed-speed models.
- iPM motor exceeds IE5 standards.
- In-house designed Neos inverter and iPM motor exceed IES2 (EN 50598) requirements for power drive efficiency.
- Industry-leading operating turndown range.
- Wide pressure selection: 4-13 bar.
- Start under system pressure, no blow-off.
- Integrated refrigerant dryer.
- Elektronikon Touch controller.
- SMARTLINK real-time, remote monitoring and optimization.
- OPC UA connectivity available.
• GA 37L-110 VSD+: Ultimate energy saver
- When you are looking for efficiency, lowest cost of ownership and sustainability, the GA 37L-110 VSD+ delivers a superior solution. This oil-injected screw compressor with Variable Speed Drive technology generates energy savings of up to 50%. What is more, its upright, compact design saves valuable floor and workspace, eases maintenance access, and reduces total cost of ownership.
- Meeting and exceeding efficiency benchmarks:
- The iPM motor of the GA 37L-110 VSD+ exceeds IE5 standards.
- Neos inverter and iPM motor exceed IES2 (EN 50598) requirements for power drive efficiency.
- Innovative Neos inverter
- Atlas Copco’s in-house designed inverter also controls iPM motors.
- IP5x protection.
- Robust aluminum enclosure for trouble-free operation in the harshest conditions.
- Fewer components: compact, simple and user-friendly
- VSD+ Neos cubicle
- Electrical components remain cool, enhancing their lifetime.
- Dedicated drive for iPM technology motors.
- Heat dissipation of inverter in separate compartment.
- Sentinel no-loss inlet valve
- Optimizes the inlet flow of the air end.
- No blow-off losses.
- Full aluminum design: maintenance-free (GA 37L-75 VSD+).
• VSD+ for up to 50% energy savings
- Over 80% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, Atlas Copco pioneered Variable
Speed Drive+ (VSD+) technology in the compressed air industry. VSD+ leads to major energy savings, while protecting the environment for future generations. Thanks to continual investments in this technology, Atlas Copco offers the widest range of
integrated VSD+ compressors on the market.
• Why Atlas Copco Variable Speed Drive+ technology?
- Up to 50% energy savings with an extensive flow range (20-100%).
- Integrated Elektronikon Touch controls the motor speed and high-efficiency frequency inverter.
- No wasted idling times or blow-off losses duringoperation. Compressor can start/stop under full system pressure
without the need to unload.
- Eliminates peak current penalty during start-up.
- Minimizes system leakage due to a lower system pressure.
- EMC compliance to directives (2014/30/EU)
• Up to 50% energy savings
- Atlas Copco’s GA VSD+ technology closely follows the air demand by automatically adjusting the motor speed. This results in
up to 50% energy savings. In addition, lowered system pressure with GA VSD+ dramatically minimizes energy use across your
production.
• GA 30+-75+: Smart performance
- The GA 30+-75+ is our fixed-speed oil-injected rotary screw compressor that sets the industry standard. It gives you more of the things that really matter: more energy savings, more air, and a longer lifetime. Its state-of-the-art compression element and a host of advanced features ensure maximum performance with best-in-class efficiency
• Smart Temperature Control System (GA 55+/GA 75+)
- An intelligent algorithm calculates the ideal oil-injection temperature based on parameters such as ambient and oil temperature, pressure and load, and air humidity. When necessary, the STC valve routes the oil via the coolers to achieve
that ideal temperature to increase compressor efficiency and eliminate the risk of condensation.
• GA 37-90: Premium compressor
- The GA 37-90 gives you that trusted Atlas Copco oil-injected screw performance atthe lowest investment cost. Built with top-quality materials, the GA 37-90 ensures compressed air reliability and efficiency in the toughest conditions.
