Atlas Copco GA 90+ - 160 (VSD+) Oil-Flooded Screw Air Compressors

Atlas Copco GA 90+ - 160 (VSD+) Oil-Flooded Screw Air Compressors

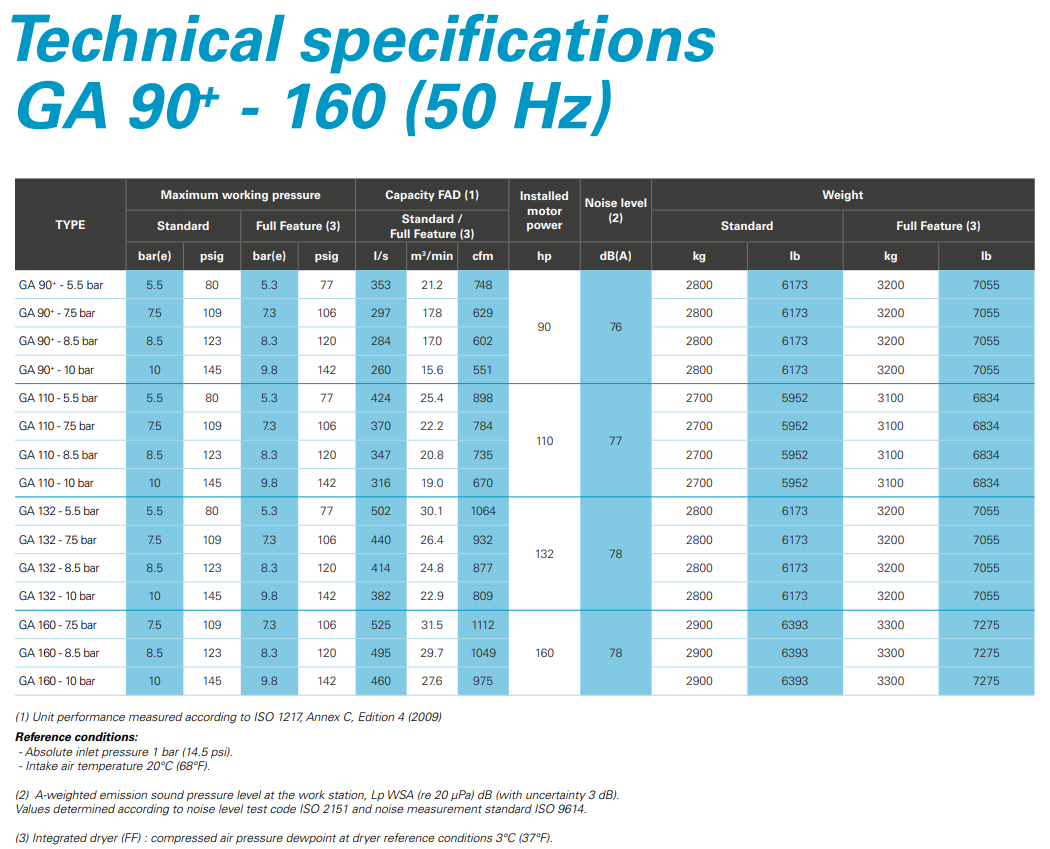

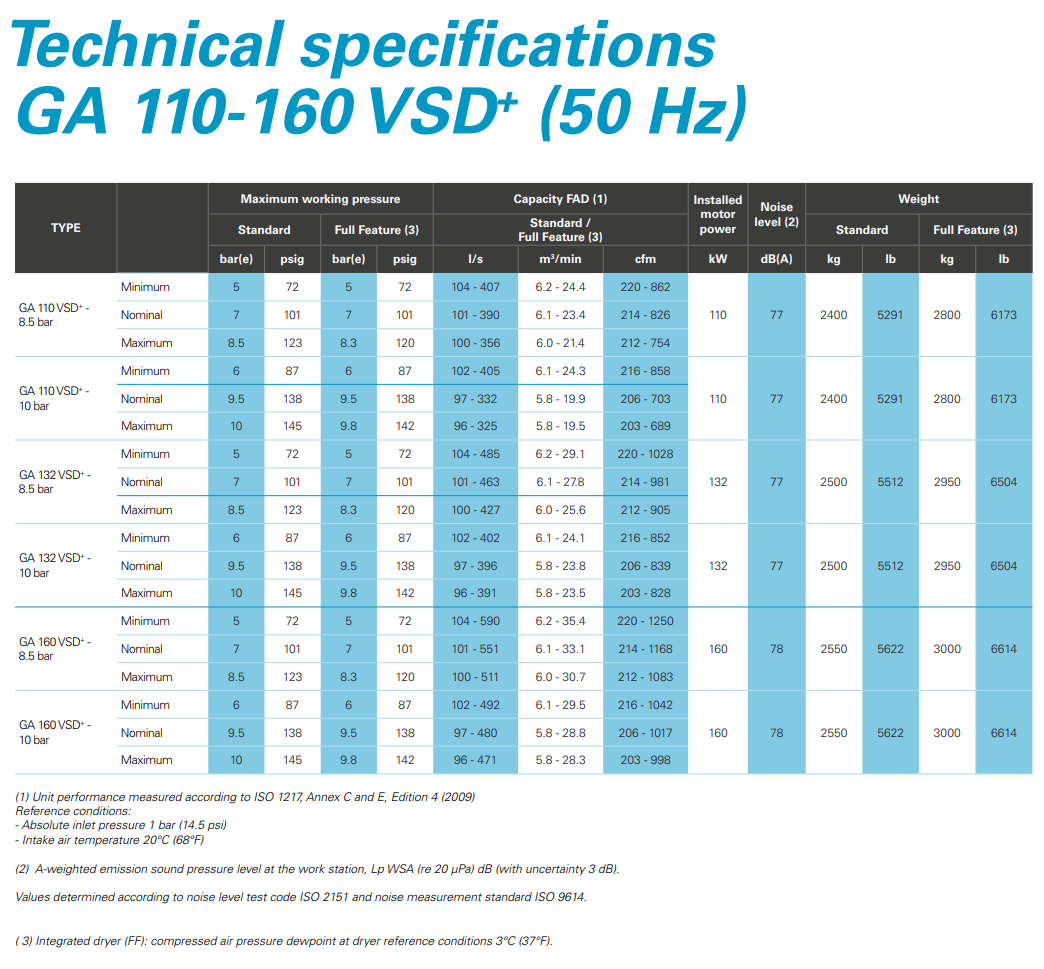

Technical parameters and data sheets

•   Always operates reliably and at peak efficiency
-   SmartInjection provides exact amount of oil required to element ensuring it always works at peak efficiency in different
conditions.
-   Separate oil flow to bearings for longer life and greater uptime.

•   High efficiency IE4 motor
-   Oil cooled motors require no service interventions.
-   IP66 rated for increased reliability even in tough environments.

•   Reduced service time for greateruptime
-   Multiple smaller cartridges simplify and reduce service times and minimize oil carry over.

•   Ready-to-use compact package
-   The GA Full Feature comes with an integrated dryer.
-   Guaranteed dew point of 3°C/37°F.
-   No additional installation work of wires and pipes.
-   Reduced power consumption due to unique and patented Save Cycle Control stops the dryer when the compressor is stopped or in unload mode.
-   Continuously monitored dew point.

•   Ease of maintenance
-   Minimal service times with service parts grouped together for ease of access.
-   Portal design enables full access to all components.
-   All components are designed for serviceability.

•   Up to 78% of energy recovered as hot water
-   Optional integrated energy recovery system.
-   Up to 78% energy recovered from integrated motor and element oil circuit.

Operate at temperatures up to 46°C (115°F) as standard
VSD fan delivers energy efficiency in lower temperatures.

•   High efficiency IE5 Permanent Magnet motor
-   No need for external cooling because of oil cooled motors.
-   Increased reliability and fewer service interventions.
-   IP66 rated motor.

•   Energy savings up to 35%
-   Atlas Copco's VSD technology closely follows the air demand by automatically adjusting the motor speed. This results in large energy savings of up to 35%. The Life Cycle Cost of a compressor can be cut by an average of 22%. In addition, lowered system pressure with VSD minimizes energy use across your production dramatically.

•   Elektronikon® MK5 Touch
-   The Elektronikon® unit controller is specially designed to maximize the performance of your compressors and air treatment equipment under a variety of conditions. Our solutions provide you with key benefits such as increased energy efficiency, lower energy consumption, reduced maintenance times and less stress… less stress for both you and your entire air system

•   Intelligence is part of the package
-   The full color touch display gives you an easy to understand readout of the equipment’s running conditions.
-   Clear icons and intuitive navigation provides you fast access to all of the important settings and data.
-   Monitoring of the equipment running conditions and maintenance status; bringing this information to your attention when needed.
-   Operation of the equipment to deliver specifically and reliably to your compressed air needs.
-   Built in remote control and notifications functions provided as standard, including simple to use integrated webpage.
-   Integrated SMARTLINK
-   Support for 31 different languages, including character based languages.

•   Driving down energy costs
-   Over 80% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, Atlas Copco pioneered Variable Speed Drive (VSD) technology in the compressed air industry. VSD leads to major energy savings, while protecting the environment for future generations. Thanks to continual investments in this technology, Atlas Copco offers the widest range of integrated VSD compressors on the market.

•   Online & mobile monitoring
-   Monitor your machines over the ethernet with the Elektronikon® unit controller and the SMARTLINK service. Monitoring features include warning indications, compressor shut-down, sensor trending and maintenance scheduling.

•   Quality Assurance
-   The Seller warrants that the ordered goods are manufactured from high-quality materials and standard processes, are brand new and unused, and fully comply with the quality, specifications, and performance stipulated in this Contract. The Seller further warrants that the goods ordered under this Contract, when properly installed, used, and maintained, shall be free from defects for a period of 18 months from the date of shipment from the port of export, or 12 months from the date of commissioning, whichever occurs first.
