Atlas Copco ZR/ZT 55 - 90KW Oil-free screw air compressors

Atlas Copco ZR/ZT 55 - 90KW Oil-free screw air compressors

Atlas Copco ZR/ZT 55 - 90KW Oil-free screw air compressors

Atlas Copco ZR/ZT 55 - 90KW Oil-free screw air compressors

The shortest route to superior productivity is to minimize operational cost while maintaining an
uninterrupted supply of the right quality of air. The Atlas Copco Z compressor series is focused on
effectively saving energy, ensuring product safety – only oil-free machines exclude contamination risks for
100% – and guaranteeing the utmost reliability around the clock. And not just today, but day after day,
year after year, with minimal maintenance cost, few service interventions and long overhaul intervals.

Contact
Atlas Copco ZR/ZT 55 - 90KW Oil-free screw air compressors

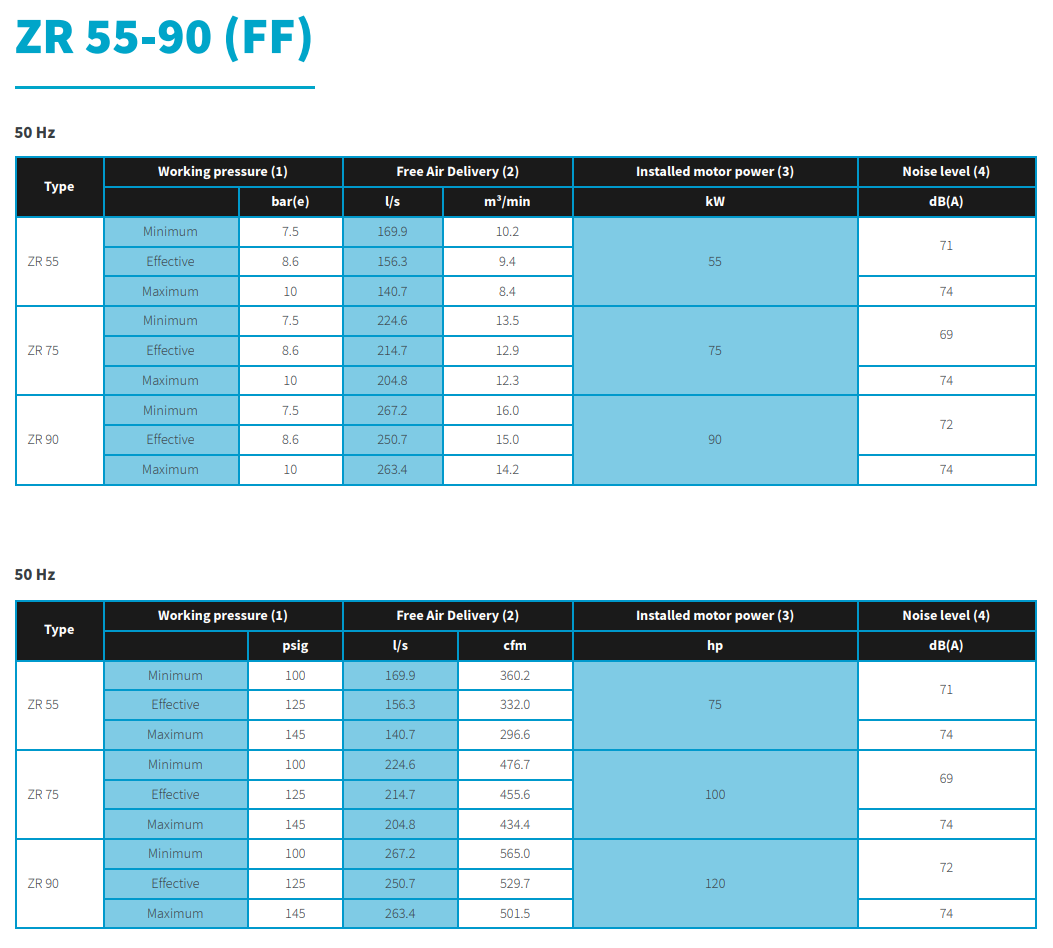

Technical Specifications and Equipment Description

•   Having the right air quality protects your production
-   Compressed air is used in a wide variety of manufacturing and commercial operations. Air is generated from the ambient atmosphere around the compressor and typically would contain contaminants in the form of dust and water which are two naturally occurring impurities while a third impurity which is oil typically gets added to compressed air due to the compression process. Oil though can be avoided/eliminated by using our 100% oil-free compressors.

•   ZR 90 VSD
-   Oil-free air compressor elements (Class 0)
-   Unique seal design guarantees certified oil-free air
-   Superior coating for high durability
-   Cooling jackets to ensure world class compression in different conditions

•   Main drive motor
-    IP55 TEFC motor protects against dust, chemicals and humidity
-   Continuous operation under severe ambient conditions

•   Efficient intake air filtration
-   2 stage dust removal system (99.9% for 3 micron)
-   High grade protection of the compressor

•   Highly reliable coolers
-   Compact design with low approach temperature
-   Low thermal stresses ensure long lifetime
-   Reliable water separation ensures low water carry over to downstream equipment
-   Stainless steel water coolers designed for durability and easy serviceability

•   Reliable load/unload regulation
-   No external air supply needed
-   Mechanical interlock o

•   Advanced touch screen monitoring system
-   User friendly Elektronikon Touch with enhanced connectivity potential
-   Integrated smart algorithms to protect equipment in harsh
conditions
-   Including warning indications, maintenance scheduling and online visualization of the machine’s condition

•   Complete Plug-and-play package
-    All in one solution: fault free installation, easy commissioning and quick start up
-   Includes internal piping, coolers, motor, drive, lubrication and control system

•   Sound proof design
-   Silenced canopy ensures optimal working conditions for everyone in the immediate environment
-   Optimized internal ducting and integrated pulsation damper to reduce noise level

•   Ease of maintenance
-   Minimal service time with service parts grouped together for ease of access
-   All components are designed for serviceability and longevity
-   Optional service plans available to extend warranty

•   Smart Energy Recovery valve
-   The Energy Recovery option on ZR has improved regulation to ensure stable water temperature at the required level for your
processes.

•   Components designed for efficiency
-   Compressor elements with superior coating, optimized design and low loss bearings and seals ensure highest efficiency.
-   Efficient intake filtration for minimum losses and low pressure drop.
-   Coolers are designed for efficiency with low pressure drop and low air approach temperature, ensuring coolest possible running conditions.
-   Our fixed speed machines come with IE4 super premium efficiency motors, giving you extra energy savings, every hour the machine runs.
-   VSD machines are equipped with IE3 premium efficiency motors, in combination with our highly efficient in-house designed Neos frequency converter.
-   With machines typically running 4000 to 8000 hours per year, again a major contributor to energy savings.

•   Lower energy costs with Atlas Copco’s VSD technology
-   Over 80% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, tlas Copco pioneered Variable Speed Drive (VSD) technology in the compressed air industry. VSD leads to major energy savings, while protecting the environment for future generations. Thanks to continual investments in this technology, Atlas Copco offers the widest range of
integrated VSD compressors on the market.

•   Central controllers
-   Having a central controller reduces the average pressure band.It also reduces the operating pressure of your machines.
• By reducing the pressure by 1 bar (or 14.5 psi), your energy usage lowers by 7%.
-   By reducing the pressure by 1 bar (or 14.5 psi) decreases air leakages by 13%.
-   Multiple embedded functions in the Optimizer 4.0 in which pressure, capacity and speed can be regulated. Legend
A = Net pressure
B = Average pressure
C = Min. system pressure

•   Compressed air dryers
-   The correct choice of dryer technology corresponding to the compressed air quality requirements is detrimental to a reliable
and energy efficient compressed air installation. The choice for integrated dryers – our full feature concept – will have additional benefits, reducing installation cost, time and complexity, having dryers controlled together with the compressors, reducing connecting pipes, hence the chance of leakages and extra pressure drops. And look at the major space
saving full feature machines can bring. Smart AIR solutions have impact on every aspect of your compressed air installation.

•   Compressed air filters
-   Also the correct filter grade in correspondence with air quality requirements will be an important contributor in a smart AIR
solution. This goes hand in hand with correct maintenance of the filters, as incorrectly maintained filters will jeopardize both the
reliability of your installation as the energy efficiency.

•   Quality Assurance
-   The Seller warrants that the ordered goods are manufactured from high-quality materials and standard processes, are brand new and unused, and fully comply with the quality, specifications, and performance stipulated in this Contract. The Seller further warrants that the goods ordered under this Contract, when properly installed, used, and maintained, shall be free from defects for a period of 18 months from the date of shipment from the port of export, or 12 months from the date of commissioning, whichever occurs first.
